Bondtech LGX Lite V2 Large Gears eXtruder (with Motor)

• Tighter tolerances;
• improved build quality:
  • sturdier 2 parts housing design;
  • precise stepper motor centering.
• extra mounting point;
• increased resistance to heat;
• micro form factor, featherweight and small footprint;
• enhanced filament grip;
• and that Bondtech black Look : )

Includes full size LGX Large Gears, maintenance windows and filament tension lever with 3 presets (open; rigid; flexible). This extruder only supports 1.75 mm size filament.

The Bondtech LGX Lite V2 is a filament feeder based on the LGX® Large Gears eXtruder and uses Bondtech’s new Dual Drive Technology based on larger drive gears.

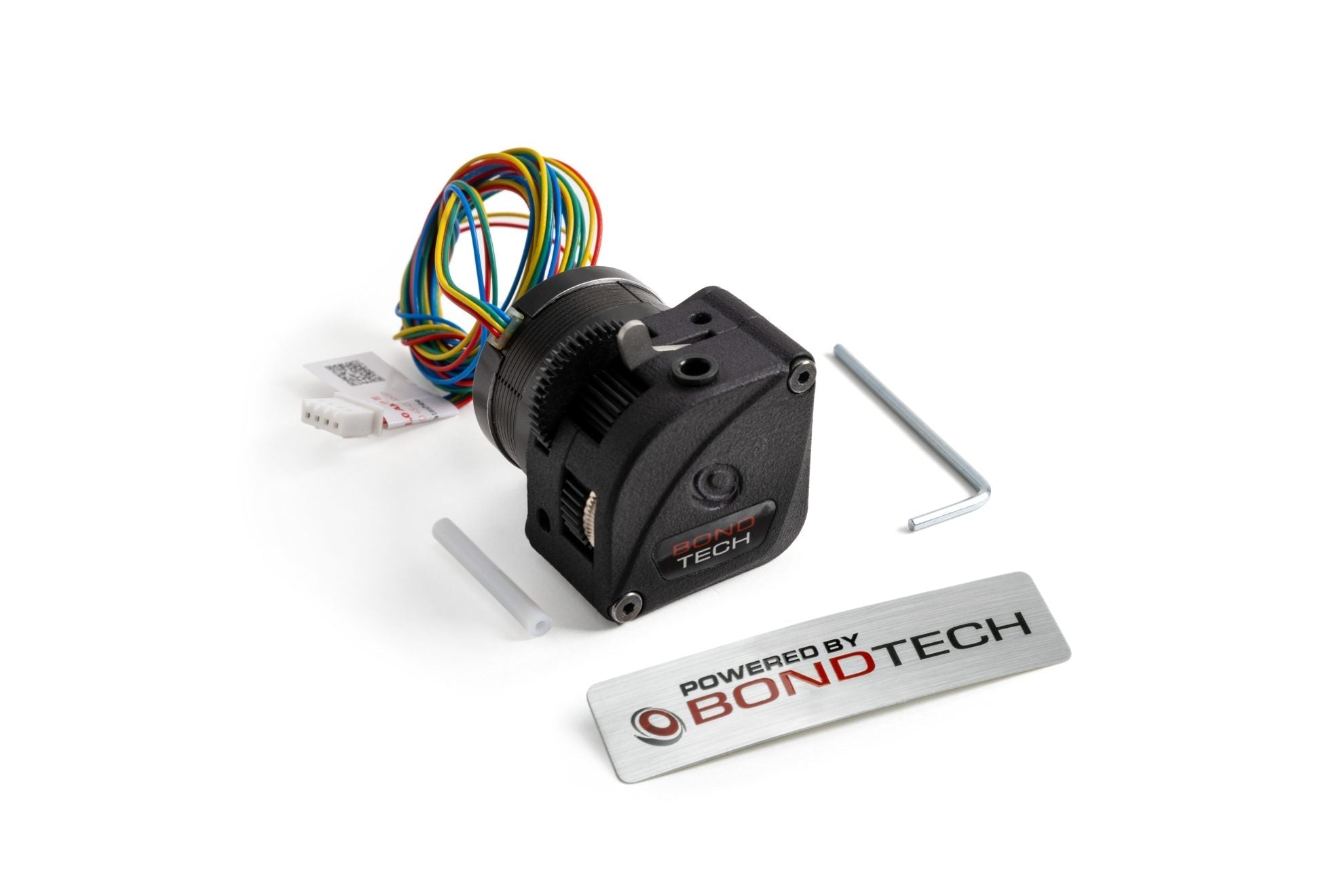

Each LGX Lite V2 extruder is supplied with:

• 1x LGX Lite V2 feeder;
• 1x Nema14 Round 20mm pancake stepper motor (mounted on extruder)
• 1m long lead cable
• with JST-XH 4-pin connector
• 1x 2mm Hex Key (recommended tool)
• 1x Powered By Bondtech sticker

Also shipping with additional accessories:

• 1x Push-fit collar (inserted)
• 1x 30mm PTFE tube to use in the PTFE Tube Adapter
• 8x M3 square nuts for reinforcing mounting holes (inserted)

8 features of this Bondtech eXtruder:

• Larger drive wheels, for increased filament grip;
• Filament pre-tension lever, for repeated results;
• Drive wheels’ maintenance windows, for easy cleaning;
• Compact, light & centered filament path, for increased performance and compatibility;
• Multiple mounting hole patterns, for easy and flexible setup;
• Compatible with Nema14 round stepper motors;
• Craft boxes without bleaching & no coating.

3D Printed Housing using PA12 GF

The housing parts are professionally printed with polyamide 12 Glass Filled for maximum strength, precision and higher temperature resistance.
