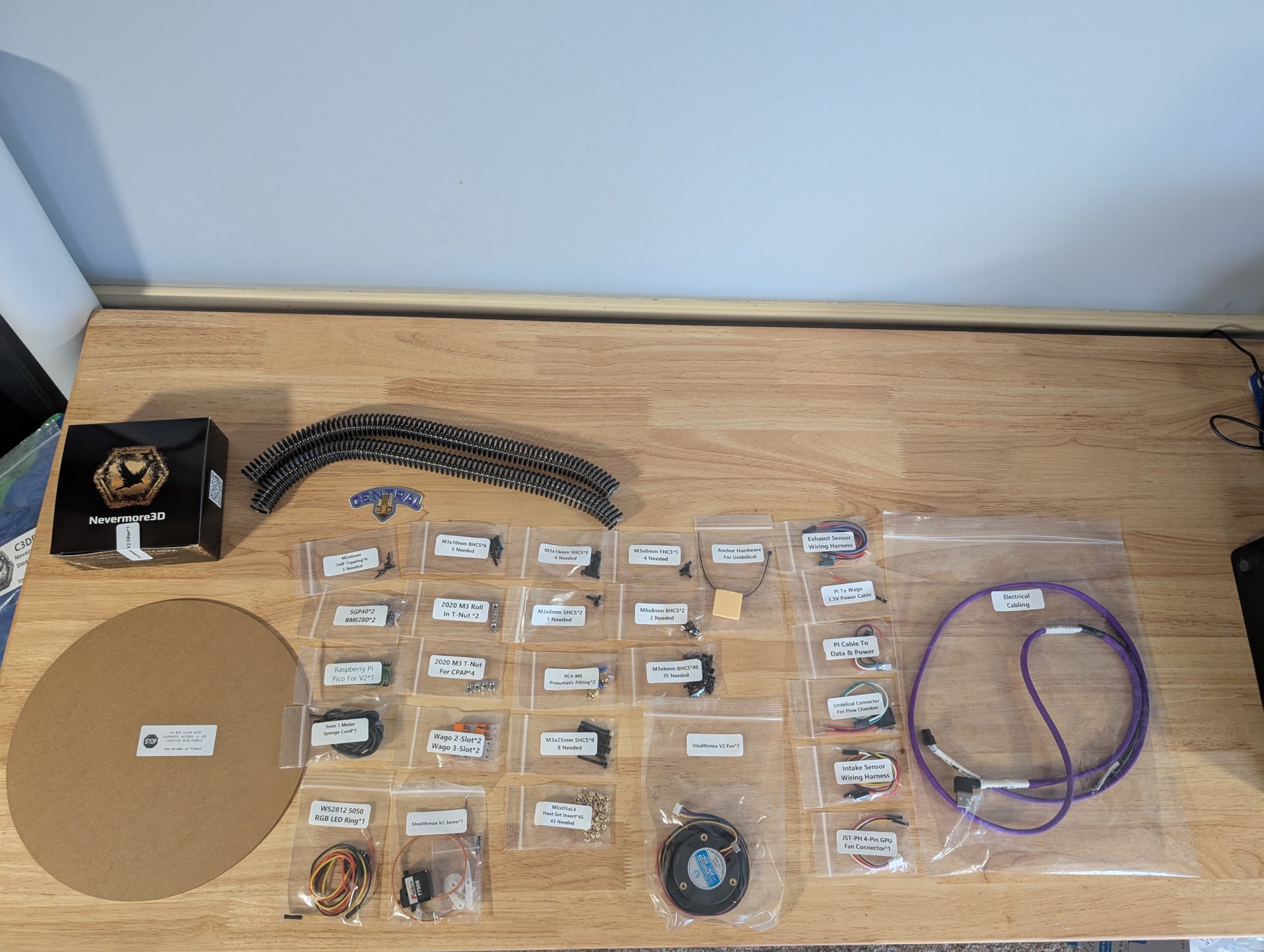

Nevermore StealthMax V2 Hardware Kit
$134.99
Skip to product information
Nevermore StealthMax V2 Hardware Kit
$134.99

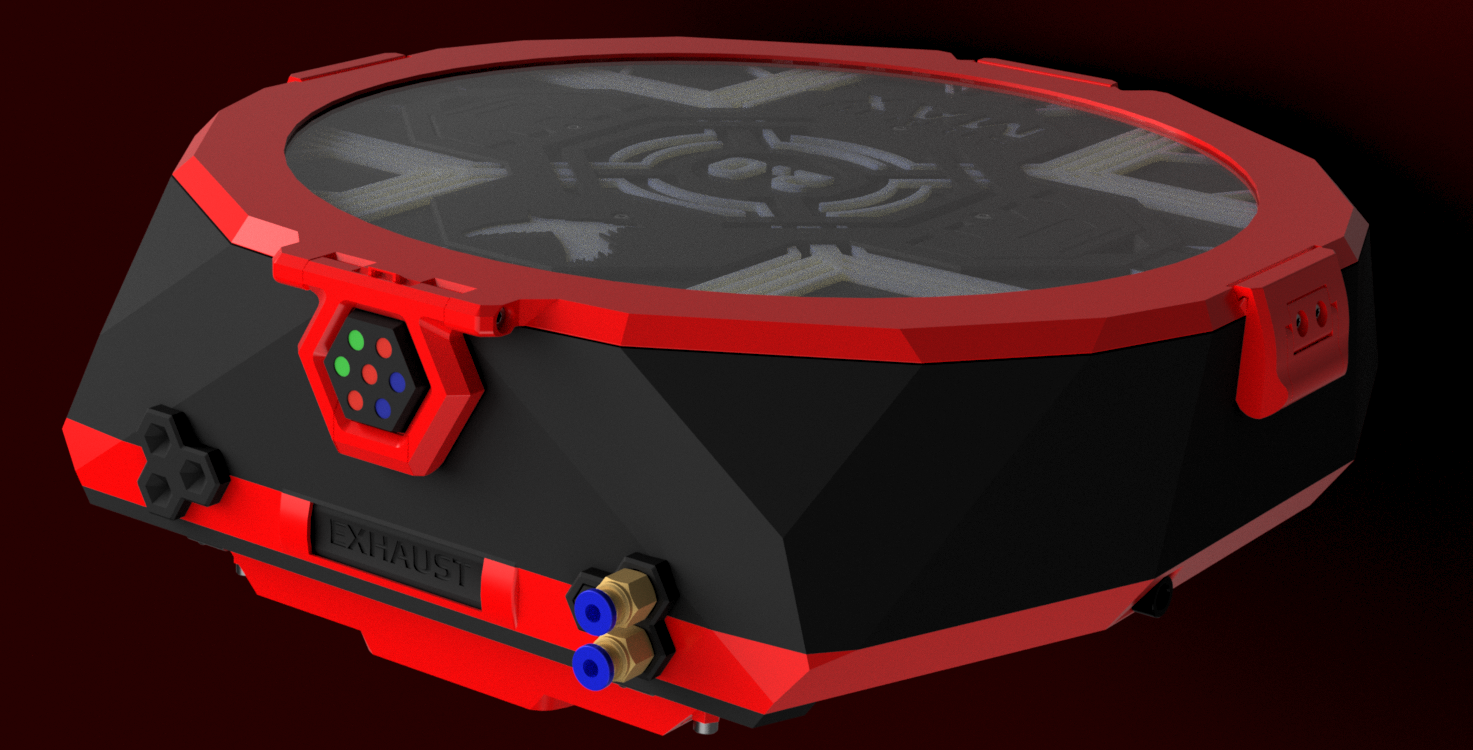

Welcome to the next generation of Nevermore filtering, introducing the Nevermore Stealthmax V2!
Why choose C3DP kits? They are USA assembled, all crimping and soldering come pre-done, there is an electronics assembly guide for this specific kit and the kit comes with a 6 month DOA warranty!
Does NOT include printed parts.
Does NOT come with carbon.
Contact us if you would like us to print the parts for you.
Now includes a color picker for the umbilical cable. Color swatch is in the picture library for the product.
This is for the V2 version of the Stealthmax only!
Electronics Assembly Instruction Manual: Available Here

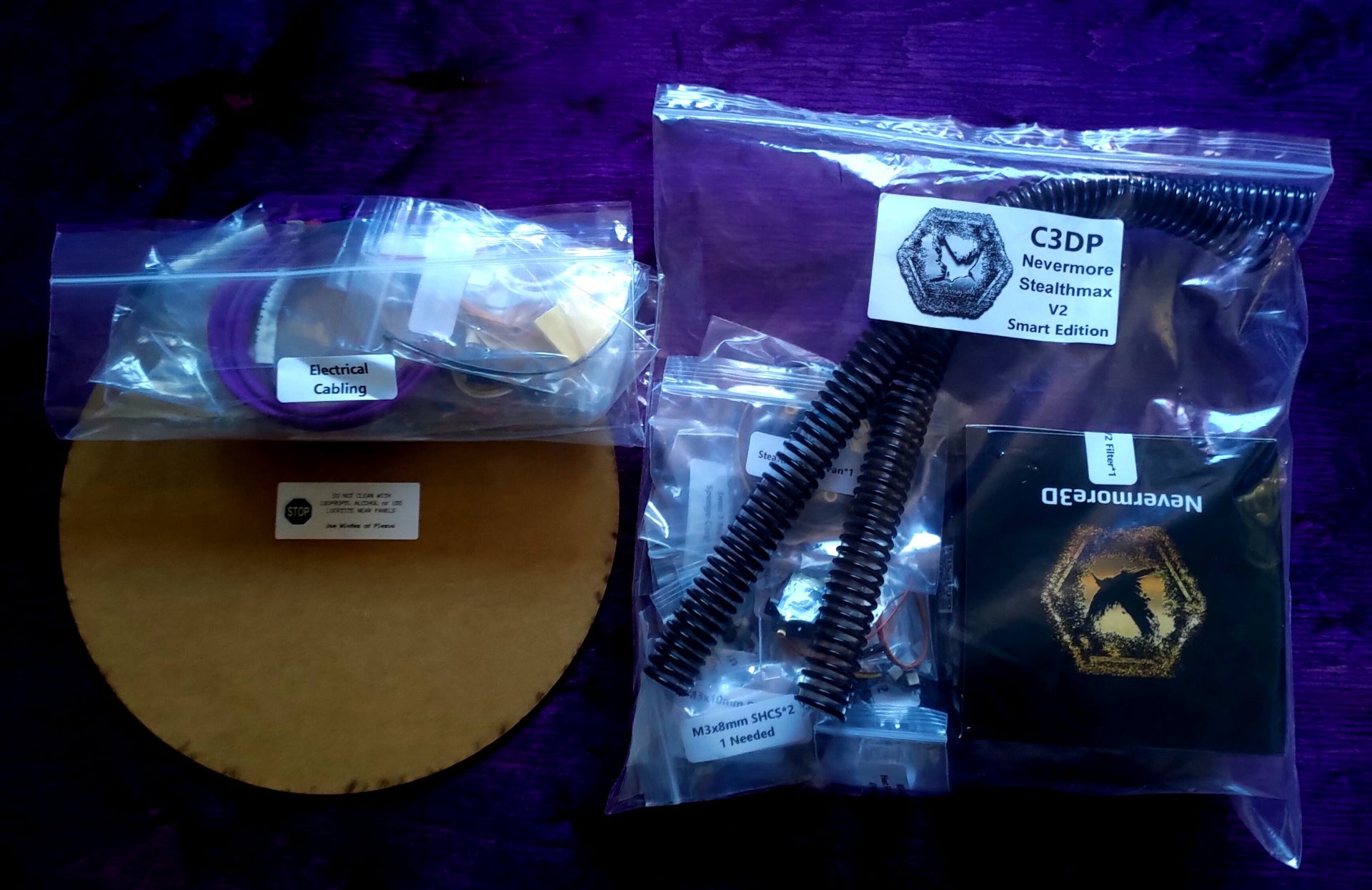

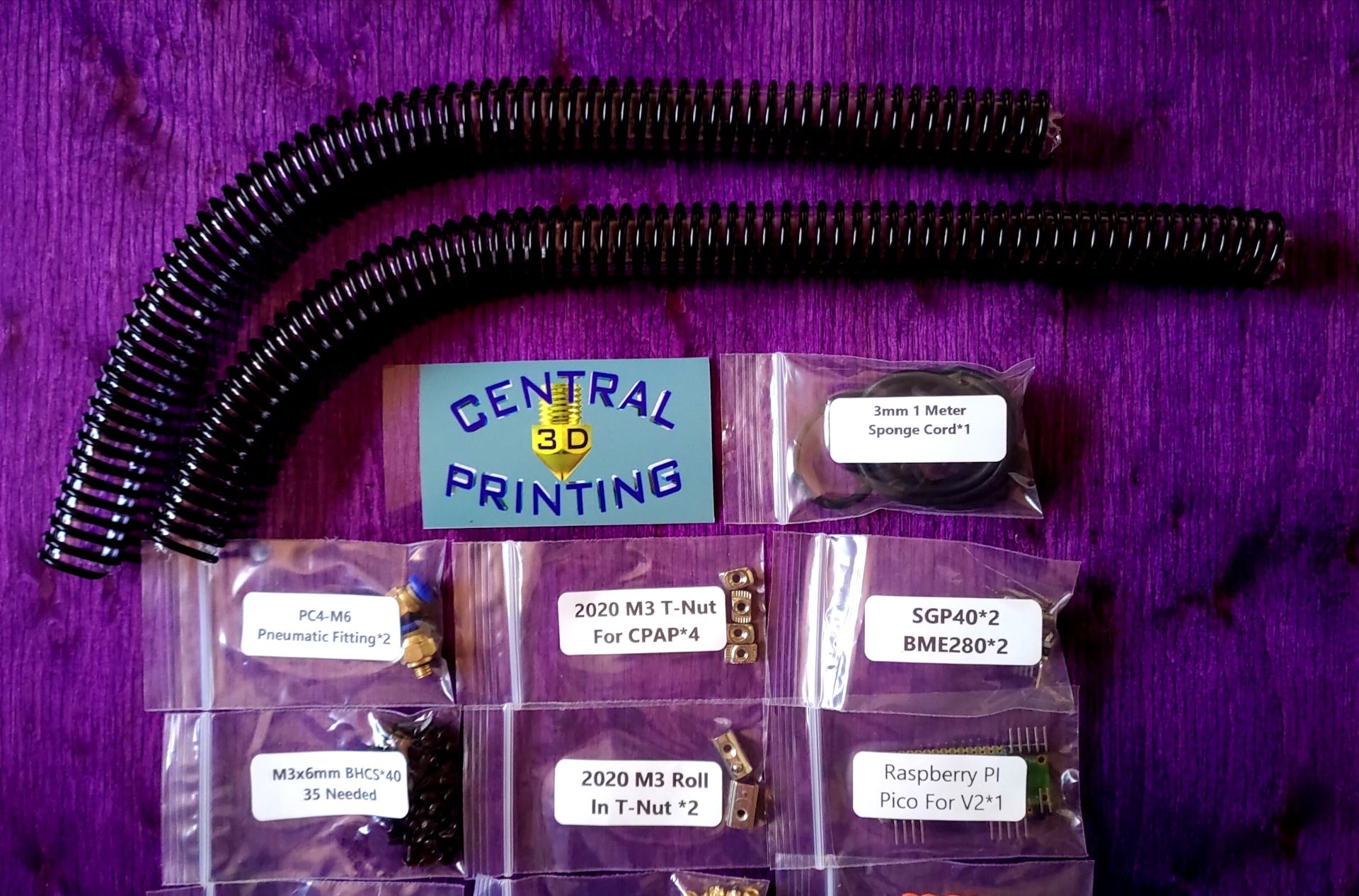

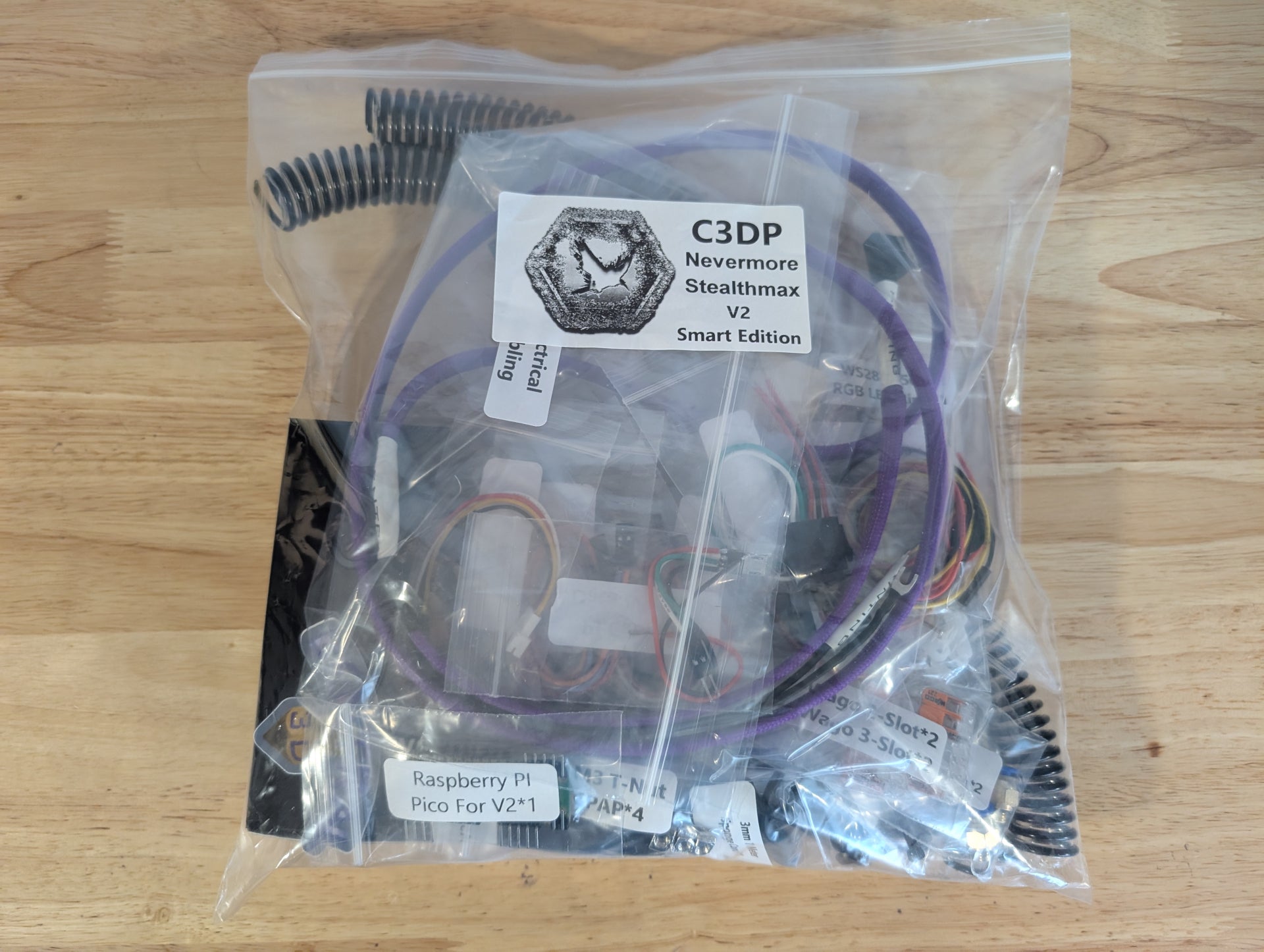

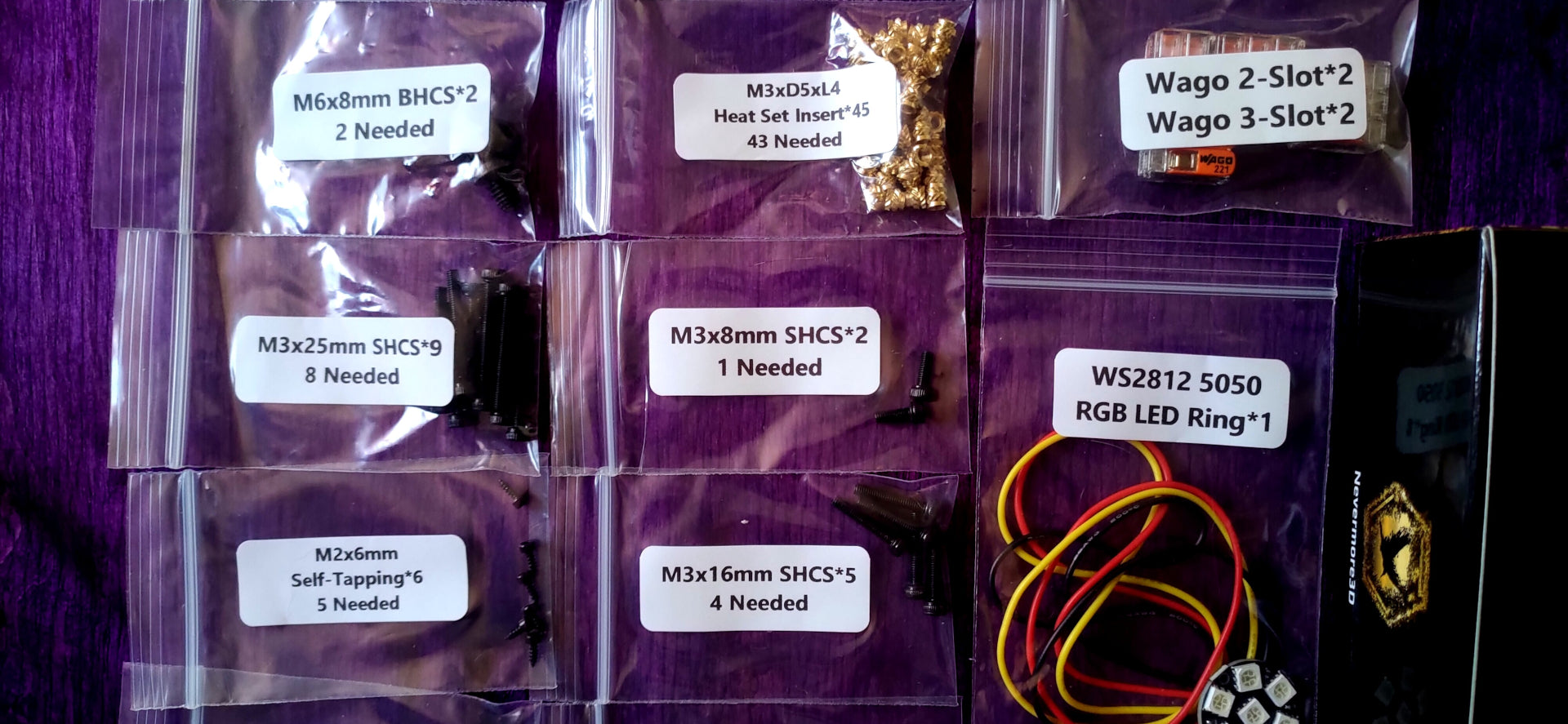

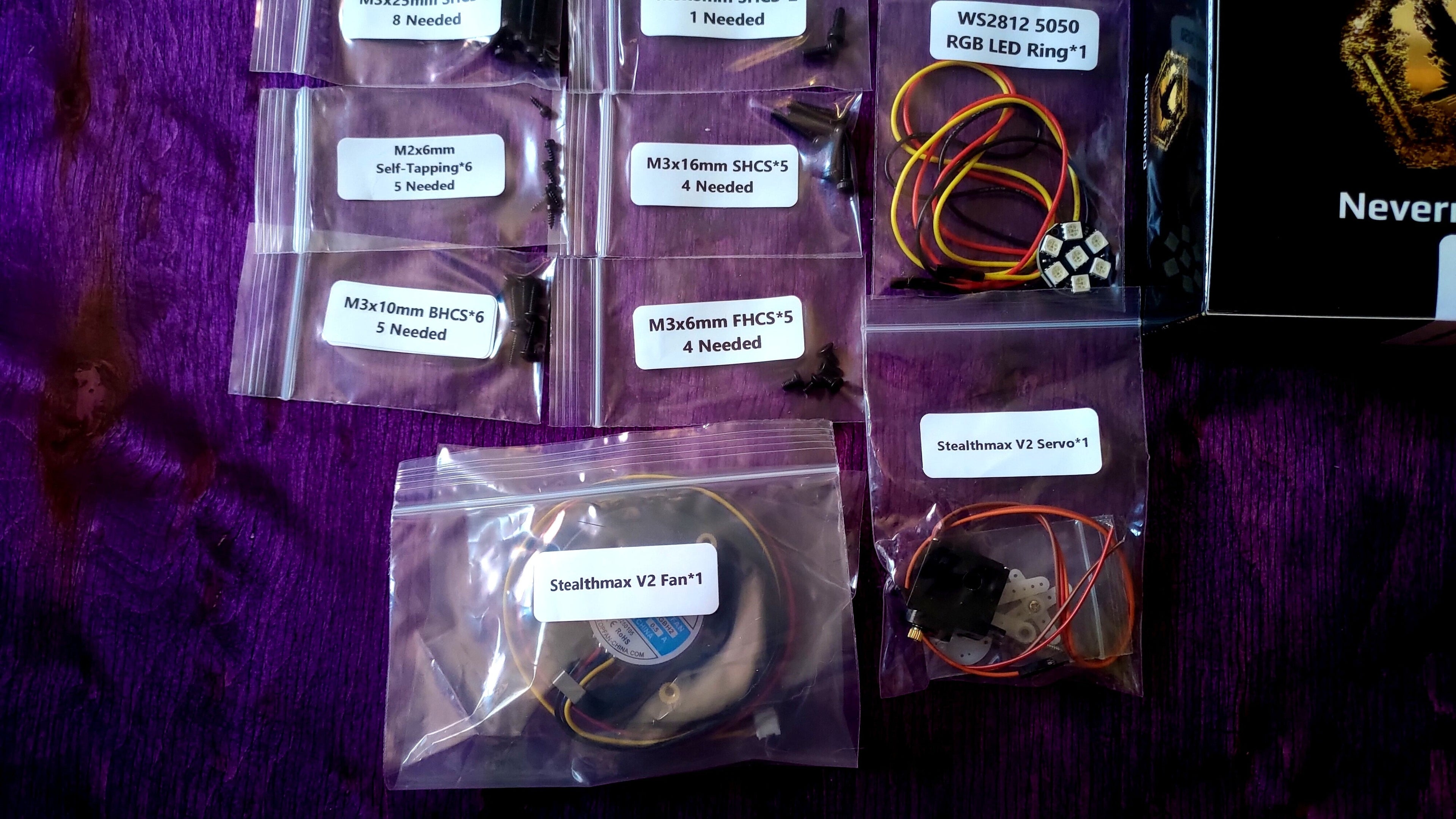

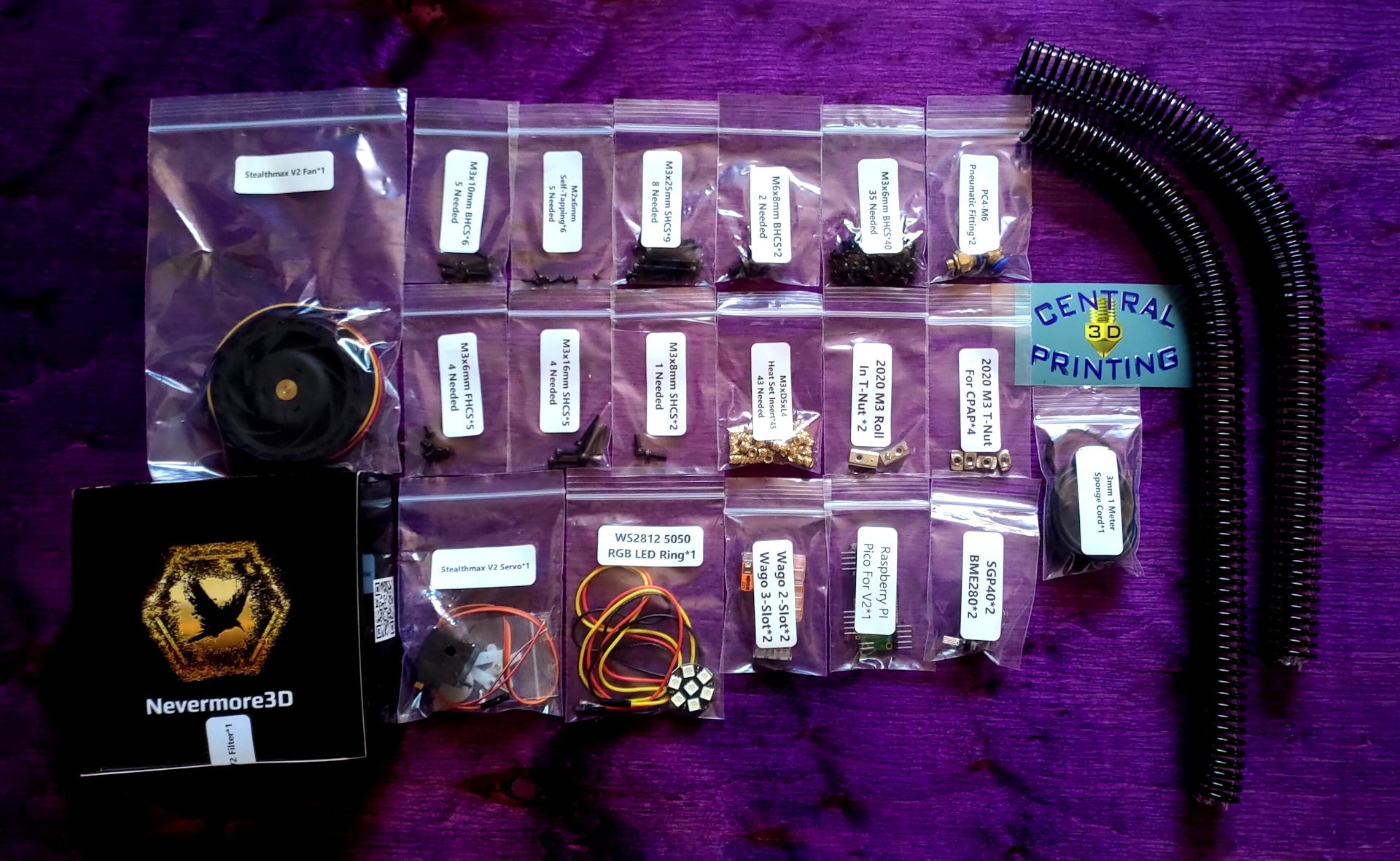

BOM Version R3:
| Description | Quantity |
| Raspberry PI Pico MCU With Headers Pre-Soldered | 1 |
| SGP40 Pre-Soldered Into Sensor Stack | 2 |
| BME280 Pre-Soldered Into Sensor Stack | 2 |
| Stealthmax V2 FT90M Servo Pre-Terminated | 1 |
| Stealthmax V2 Fan Pre-Terminated | 1 |
| Stealthmax V2 H14 Filter | 1 |
| WS2812 5050 RGB LED Ring Pre-Soldered & Pre-Terminated | 1 |
| 3mm 1-Meter Sponge Cord | 1 |
| Wago 2-Slot | 2 |
| Wago 3-Slot | 2 |
| 2020 M3 Roll-In T-Nut | 2 |
| 2020 M3 Roll-In T-Nut For CPAP | 4 |
| 17mm CPAP Tubing Pre-Cut For 350mm Chamber Size | 2 |
| 3x250mm Acrylic Circle | 1 |
| PC4-M6 Pneumatic Fitting | 2 |
| M3xD5xL4 Heat Set Insert - 43 Needed | 45 |
| M2x6mm Self-Tapping - 5 Needed | 6 |
| M3x8mm FHCS - 4 Needed | 5 |
| M3x6mm BHCS - 35 Needed | 40 |
| M3x8mm SHCS - 1 Needed | 2 |
| M3x10mm BHCS - 5 Needed | 6 |
| M3x16mm SHCS - 4 Needed | 5 |
| M3x25mm SHCS - 8 Needed | 9 |
| M6x8mm BHCS - 2 Needed | 2 |
| Anchor Hardware For Umbilical | 1 |

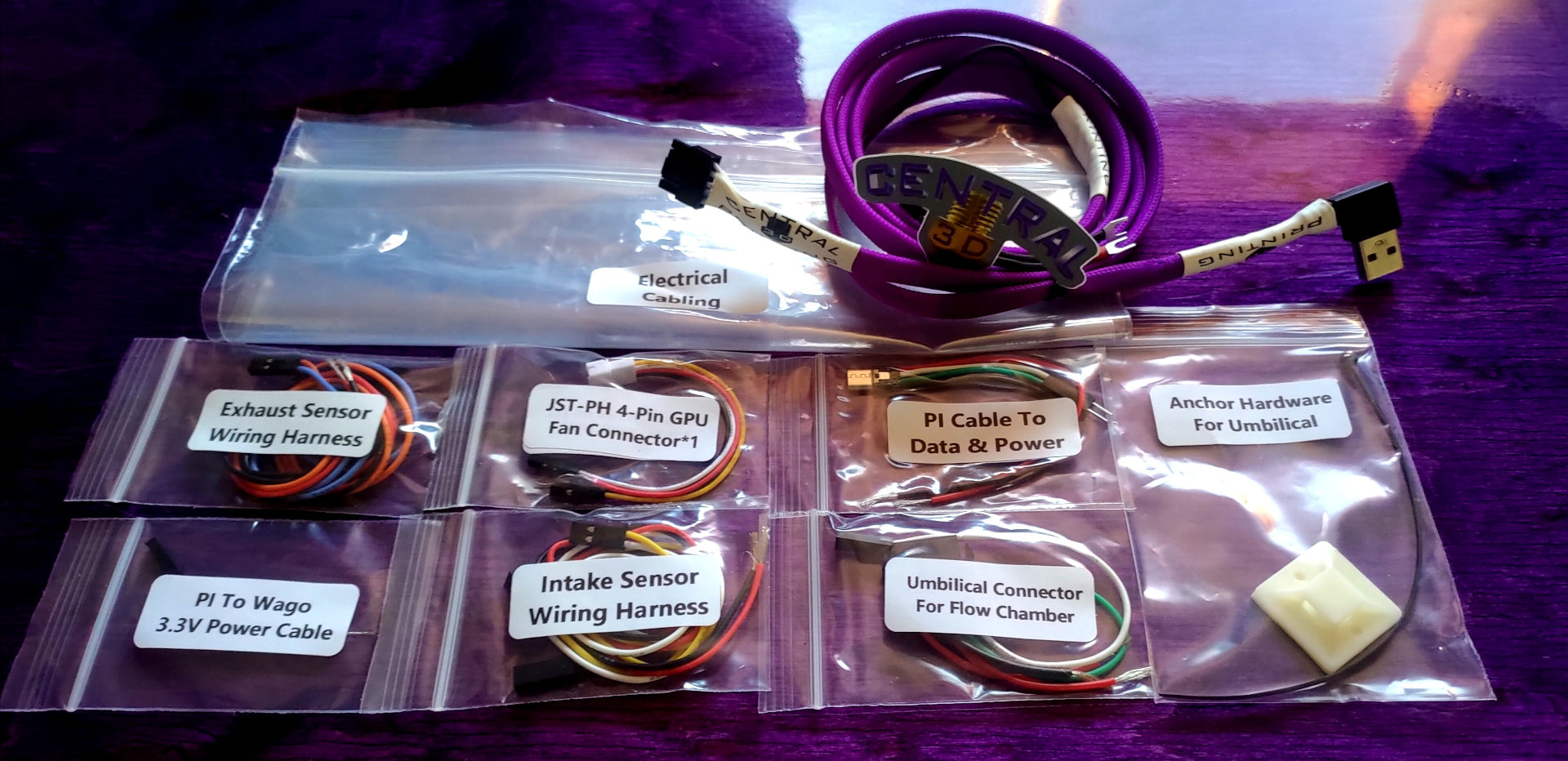

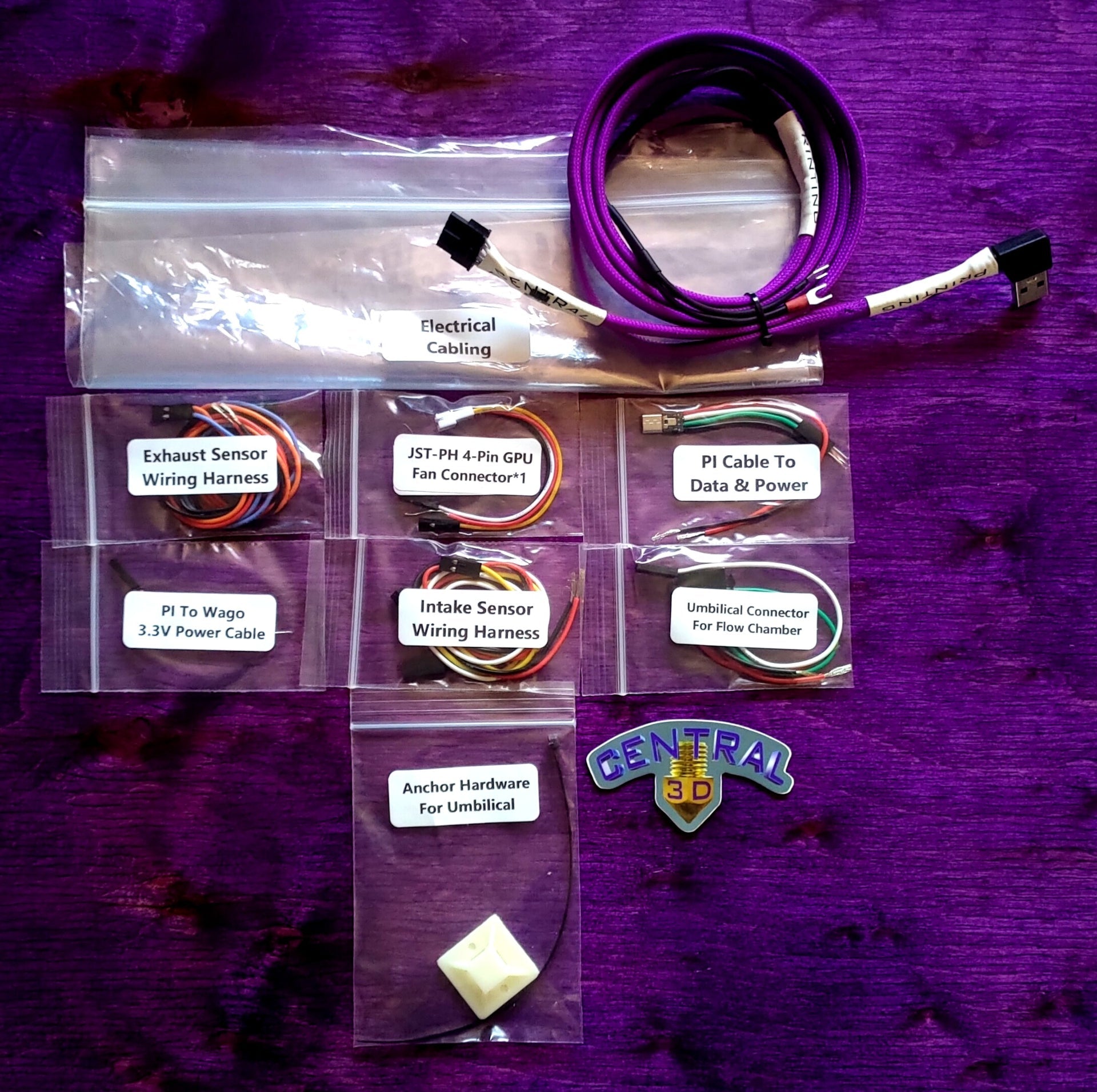

| Exhaust Sensor Wiring Harness - Pre-Terminated | 1 |
| Intake Sensor Wiring Harness - Pre-Terminated | 1 |
| PI to Wago 3.3v Power Cable - Pre-Terminated | 1 |
| PI Cable to Data & Power - Pre-Soldered & Pre-Terminated | 1 |
| Umbilical Connector For Flow Chamber - Pre-Terminated | 1 |
| JST-PH 4-Pin GPU Fan Connector - Pre-Terminated | 1 |
| USB & 24v Umbilical from Stealthmax V2 To Printer - 6 pin revision 2 - Pre-Soldered & Pre-Terminated | 1 |
